Intermittent VFFS Bagging Machines
Versatile Packaging with Intermittent VFFS Bagging Machine
Model MKI 200 / 300
The MKI Intermittent VFFS Bagging Machine is designed to pack variety of products such as confectionery, tea, coffee, spices, caramel paste, pet food, and non food products such as detergents.
The bagger is capable of producing multiple standard format of bags such as pillow bags, gusseted bags and also 3 side sealed bags.
As per your specific packing requirement the MKI bagger can be combined with various filling and dosing systems such as weighers, auger fillers, cup fillers and paste fillers.
- Main Features
- Robust steel frame
- Minimal maintenance
- Servo powered drawn down belts
- No tool change-over
- Self-centering pull belts
- Motorized film tracking
- VFD powered film unwind
- Quick film splice table
- Downtime reduction
- Long life lubrication components
- Easy and fast film replacement using air shaft

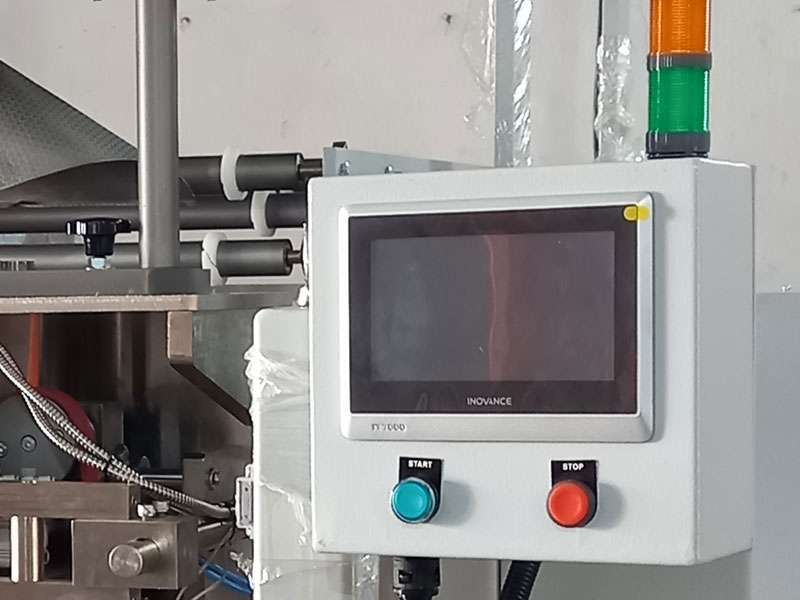

- HMI with multiple recipes – immediate recall of each format parameters.
- Low operation cost
- Space (reduced footprint)
- Low maintenance requirements
- Energy saving thanks to servomotor energy recuperation system
Reliable and Affordable VFFS bagging Machine for all Applications
Best vffs machine loaded with standard features like recipe selection, servo driven draw down belts, air shaft unwinder to facilitate quick change of laminated rolls, toolless changeover for change parts.
Easy integration with filling systems
To maximize production line efficiency, our Intermittent VFFS Bagging Machine integrates seamlessly with a variety of automated dosing systems:
Cup filler
Free flowing powders, Granular food products, Pulses, Beans, Detergent powder, Tea, Coffee Seeds, Sugar, Rice etc.
Multihead Weigh filler
Rice, Pulses, Tea, Coffee Beans, Candies/Toffees, Tablets, Cashew, Potato/Banana Wafers, Snack Foods, Namkeen, Fresh & Frozen Foods, Dried Fruits, Pasta Pieces, Detergents, Hardware Items, Spices, Soup Mixes, Sugar, etc.
Auger Filler
Non-free flowing sticky powders like Milk powder, Turmeric powder, Pharma Powders, Henna powder industrial powders etc.
Paste Filler
Semi viscous paste like tomato ketchup, caramel paste, mayonnaise, salad dressing, ginger paste. garlic paste, industrial paste etc.
Bag Formats
Pillow bag
Gusset bag
3 side seal bag
Chained bags
Technical Specifications of the Intermittent VFFS Bagging Machine
| Model | MKI 200 | MKI 300 |
| Bag width | 70-200 mm | 100-300 mm |
| Maximum Output | 70 bags / minute | 70 bags / minute |
| Core Diameter | 76 mm | 76 mm |
| Bag length | 300 mm | 400 mm |
| Outer reel diameter | 450 mm | 450 mm |
| Machine Dimension | 2090 x 1300 x 1650 mm (D x W x H) | 2090 x 1300 x 1650 mm (D x W x H) |
| Machine Weight | approx. 800 kg | approx. 1200 kg |
| Packaging material | Reels with or without printing, heat-sealable | Reels with or without printing, heat-sealable |

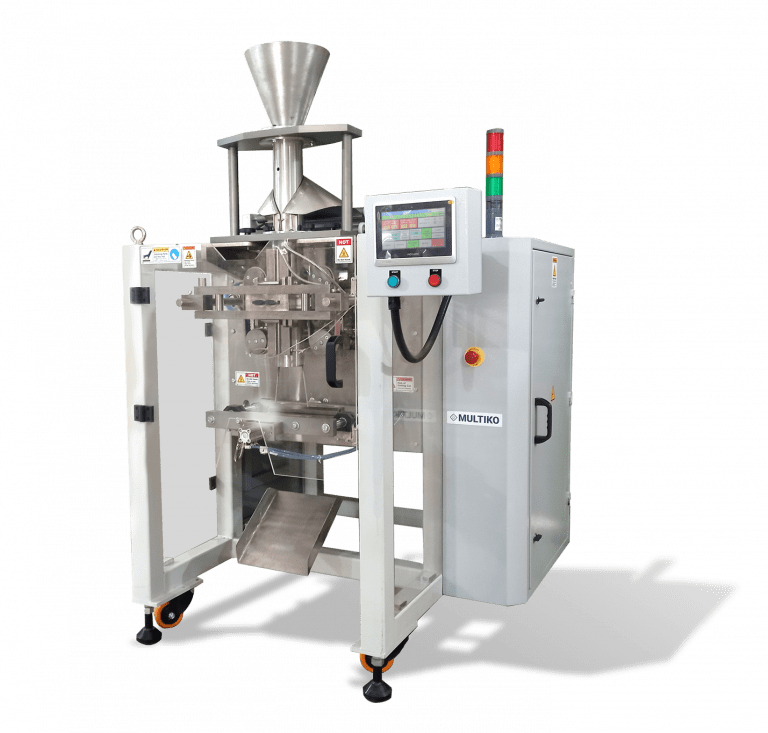

MKI 200 VFFS Machine
As highly flexible systems, our Intermittent VFFS Bagging Machines allow you to pack widely ranging products efficiently and effectively, and can be attractively presented – from your daily coffee to hand-crafted tortellini, from a selection of fresh vegetables to frozen shrimp. And of course, insecticides, detergents are also packed in bags
Frequently Asked Questions About Intermittent VFFS Bagging Machines
What is the difference between intermittent and continuous VFFS machines?
An intermittent VFFS bagging machine stops the film movement momentarily to execute the horizontal seal, making it highly precise and cost-effective for a massive range of product types. Continuous machines move the film non-stop and are generally reserved for ultra-high-speed lines.
What types of packaging film can be used?
Our MKI series handles a wide variety of heat-sealable laminated films, co-extruded films, and recyclable barrier papers using our advanced temperature control systems.
How long does a product changeover take?
Thanks to our toolless forming collar design and quick-change air shafts for film rolls, standard mechanical changeovers can be completed in under 10 to 15 minutes.
